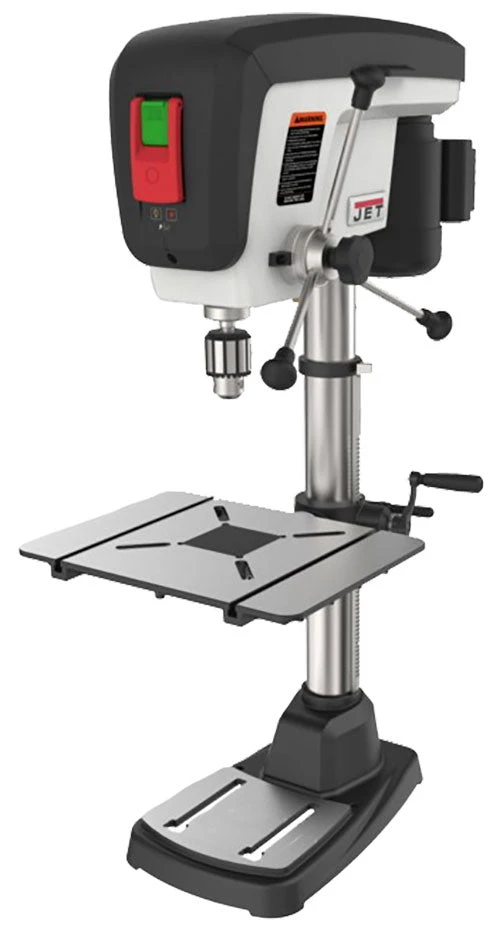

Jet 716200 JDP-15B Drill Press

15″ Benchtop Drill Press

From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2″ x 17″ work table.

Standard Equipment:

• JDP-15B Drill Press – 716200
• Drill Chuck
• Chuck Key

Specifications:

• Swing: 15″
• Spindle Travel: 3-1/8″
• Spindle Taper: MT-2/JT3
• # of Spindle Speeds: 16
• Spindle Speed: 210 to 3,500 RPM
• Table Size (L x W): 12-1/2″ x 17″
• Chuck Size: 5/8″
• Base Size: 18″ x 11-3/8″
• Motor Power: 3/4 HP
• Motor Phase: 1
• Motor Voltage: 115
• Motor Current: 9.0 A
• Weight: 154.0 lbs

Features:

• Spindle travels a full 3-1/8” with one revolution of the handle.
• Large 12-1/2″ x 17″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project.
• One-handed belt tensioning allows for rapid speed changes.
• Power switch features a safety key and large, paddle-style off button.
• Integrated depth stop makes repetitive drilling quick and easy.
• Xacta-X laser system easily identifies the drill center.
• Long-lasting, built-in LED work light reduces shadows.
• Table edge lip designed to make clamping easy.
• Replaceable MDF table insert.
• Large cast iron base provides stability.
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system.
• CSA Certified.
