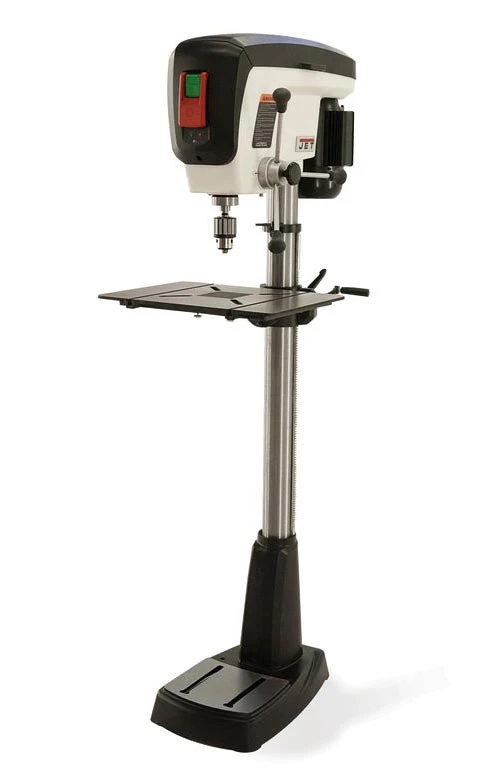

Jet 716300 JDP-17 Drill Press

17″ Drill Press

Introducing the new JET JDP-17, 17″ Drill Press. From a full 5″ of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14″ x 19″ work table provides plenty of support with an edge designed for easy clamping.

Standard Equipment:

• JDP-17 Drill Press – 716300
• Drill Chuck
• Chuck Key

Specifications:

• Swing: 16-7/8″
• Spindle Travel: 5″
• Number of Spindle Speeds: 16
• Spindle Speed: 210 to 3,500 RPM
• Table Size (L x W): 14″ x 19″
• Table Tilt: 90° R & L
• Chuck Size: 5/8″
• Column Diameter: 3-5/32″
• Base Size: 20″ x 12-5/8″
• Motor Power: 3/4 HP
• Motor Phase: 1
• Motor Voltage: 115V
• Motor Current: 9A
• Weight: 187 lbs

Features:

• Spindle travels a full 5” with one revolution of the handle.
• Large 14″ x 19″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project.
• One-handed belt tensioning allows for rapid speed changes.
• Power switch features a safety key and large, paddle-style off button.
• Integrated depth stop makes repetitive drilling quick and easy.
